Cảm biến cảm ứng

Xuất sứ: Germany

Nhà cung cấp: ANS Da Nang

Hãng sản xuất: BALLUFF VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

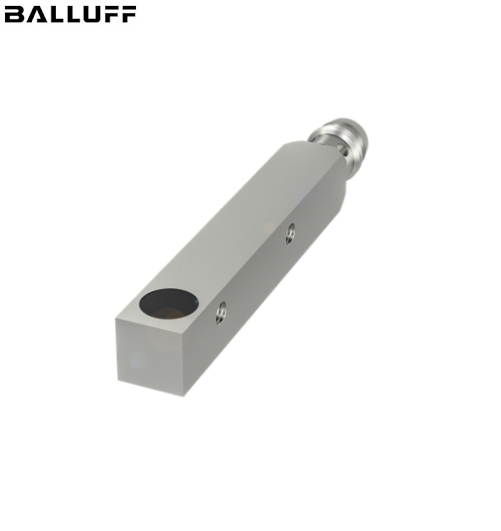

Model: BES01TF, BES Q08ZC-POC20B-S49G ǀ Cảm biến cảm ứng

Dimension: 59 x 8 x 8 mm

Style: 8x8

Installation: for flush mounting

Range: 2 mm

Switching output: PNP normally closed (NC)

Switching frequency: 3000 Hz

Housing material: Zinc, Die casting

Material sensing surface: PBT

Connection: Connector, M8x1-Male, 3-pin

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

    IP rating: IP67
