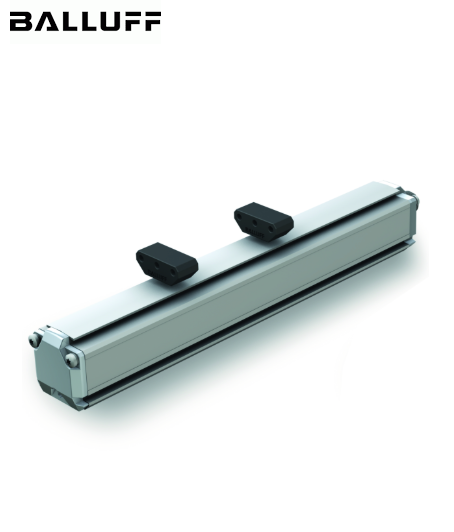

Cảm biến từ (Magnetostrictive sensors)_Order code: BTL0320 BTL5-E10-M0100-P-S32

Cảm biến từ (Magnetostrictive sensors) - Balluff

Order code: BTL0320 BTL5-E10-M0100-P-S32

Key features:

Style: Profile series

Mounting: Mounting clamps

Housing material: Aluminum

Magnets, number max.: 1

Connection:Connector, M16x0.75, 8-pin

Analog output: Analog, current 4…20 mA

Measuring range: 100 mm

Resolution: ≤ 0.2 µA

Non-linearity max.: ±100 µm

Repeat accuracy: ≤ ± 0.2 µA

Operating voltage Ub: 20...28 VDC

Ambient temperature: -40...85 °C

Protection degree: IP67
