Cảm biến vị trí (Position sensor)_Model: GBM0500MD841S1G1102HC

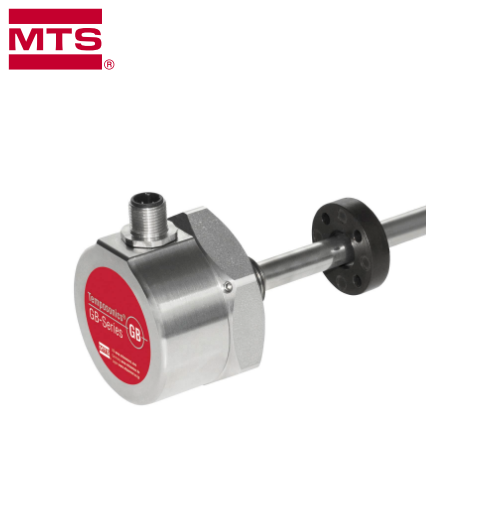

Cảm biến vị trí (Position sensor) - MTS Sensor

Model: GBM0500MD841S1G1102HC

Technical data:

Output

Voltage: 0…10 VDC and 10…0 VDC (min. load controller: > 5 kΩ)

Current: 4(0)…20 mA or 20…4(0) mA (min. / max. load: 0 / 500 Ω)

Programming: Programming of set points using optional accessories 1

Bluetooth® version: 2.1

Measured value: Position

Measurement parameters

Resolution: 16 bit (minimum 1 µm depending on stroke length)

Cycle time: ≤ 1200 mm: 0.5 ms ≤ 2400 mm: 1.0 ms > 2400 mm: 2.0 ms

Linearity: ≤ ±0.02 % F.S. (minimum ±60 µm) typically

Repeatability: ≤ ±0.005 % F.S. (minimum ±20 μm) typically
