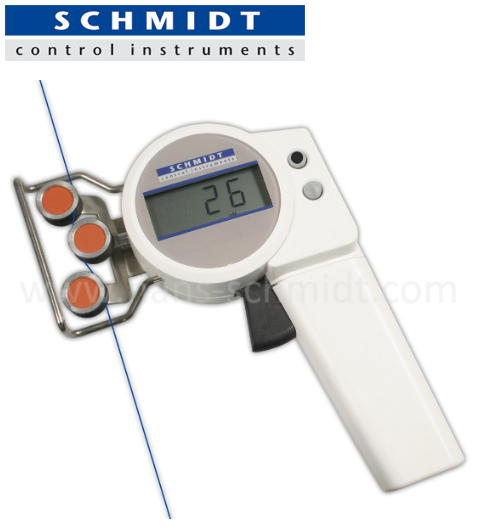

Máy đo lực căng (Tension meter)
Xuất sứ: Germany/ Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: HANS SCHMIDT/ IMADA VIET NAM
Mr. BảoMáy đo lực căng (Tension meter) - Hans Schmidt/ Imada
Model: ZED-200
Specifications:
| Calibration: | According SCHMIDT factory procedure |
| Accuracy: | ±1 % full scale ±1 digit or better typical ±0.5 % full scale |
| Overrange: | Approx. 10 % full scale, without accuracy guarantee |
| Overload protection: | 100 % full scale |
| Measuring principle: | Strain gauge bridge |
| Measuring roller deflection: | Max. 0.5 mm |
| Damping: | Adjustable electronic damping (15 value), averaging |
| A/D converter: | 12 bit |
| Signal processing: | Digital |
| Display: | LCD 3 digit, 11 mm high |
| Display update rate: | 2 times per second |
| Self-frequency: | 250 Hz |
| Auto power off: | After 3 minutes of non-use |
| Temperature range: | 10 – 45 ºC |
| Air humidity: | 85 % RH, max. |
| Power supply: | LiPo accumulator (approx. 80 h continuous use, charging time approx. 3.5 h) USB AC adapter 100…240 V AC with 4 adapters (EU/USA/UK/AUS-NZ) |
| Housing material: | Plastic (POM) |
