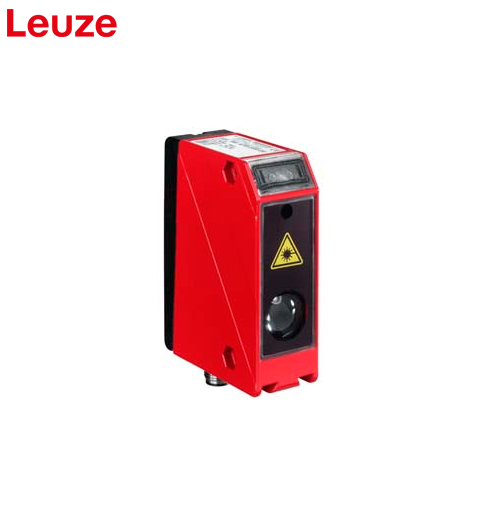

Model: ODSL 96B M/C6-2000-S12 Cảm biến quang Optical distance sensor Leuze

Model: ODSL 96B M/C6-2000-S12 Cảm biến quang Optical distance sensor Leuze

Features:

Series: 96

Type of scanning system: Against object

Light source: Laser, Red

Laser class: 2, IEC / EN 60825-1:2014

Light spot size [at sensor distance]: 2 mm x 6 mm

Measurement range: 150 ... 2,000 mm

Resolution: 1.0 ... 3.0 mm

Accuracy: 1.5 %

Reference value, accuracy: Measurement distance

Repeatability: 0.5 %

Reference value repeatability: Measurement distance

Measurement time: 1 ... 5 ms

Referencing: No

Black/white behavior: 1 %

Supply voltage UB: 18 ... 30 V, DC
