PTFE/PFA/FEP Lined 90&deg Bend/Elbow

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: ANTICO VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

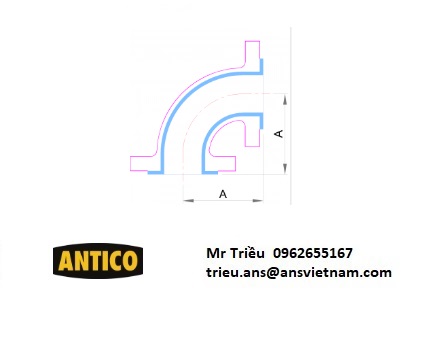

Dimensions:

TO SUITE PIPEWORK NB Centre line to Face - A Flange Diameter Raised Face Diameter Steel Thickness Liner Thickness
inches mm Inches(mm) mm mm mm mm
1" 25 89 108 51 4.5 3.3
11/2" 40 102 127 73 5.0 3.3
2" 50 114 152 92 6.0 3.3
3" 80 140 190 127 6.0 3.3
4" 100 165 229 157 6.5 4.5
6" 150 203 279 216 8.0 5.5

Specifications:

Components Material Material Standard
Body Housing Spheroidal Grey (Ductile) Iron ASTM A395/GG40.3 DIN EN 1563
Lining PTFE / PFA / FEP ASTM D3307 / ASTM D2116
