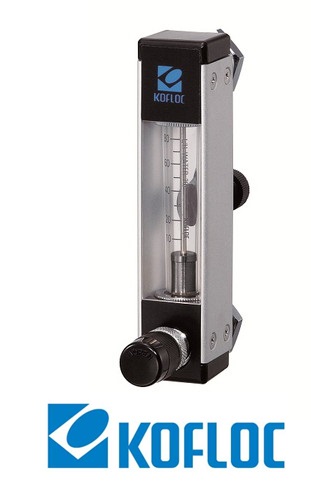

RK1930,RK1935 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang



Fluid H2O
Accuracy FS±5%
Proof pressure 0.5MPa
Material (S) SUS303, 304, Pyrex®, FKM, POM, glass
(B) Brass, Pyrex®, NBR, POM, glass

Available scale 10:1
Connection Rc 1/4
Environmental temperature 10–35℃ (No condensation)


Fluid Flow scale (L/MIN) Alarm setting range (L/MIN) Method of contact
H2O 0.1-1.0 0.3-0.7 (A) ON when the reading is
above the set value
(B) ON when the reading is
below the set value
0.2-2.0 0.7-1.4
Contact capacity 100VAC/100VDC 10VAAC/10WDC
* Models with valve: Differential pressure of 0.2 MPa is necessary for H2O 1 L/MIN.
* Models with valve: Differential pressure of 0.3 MPa is necessary for H2O 2 L/MIN.
