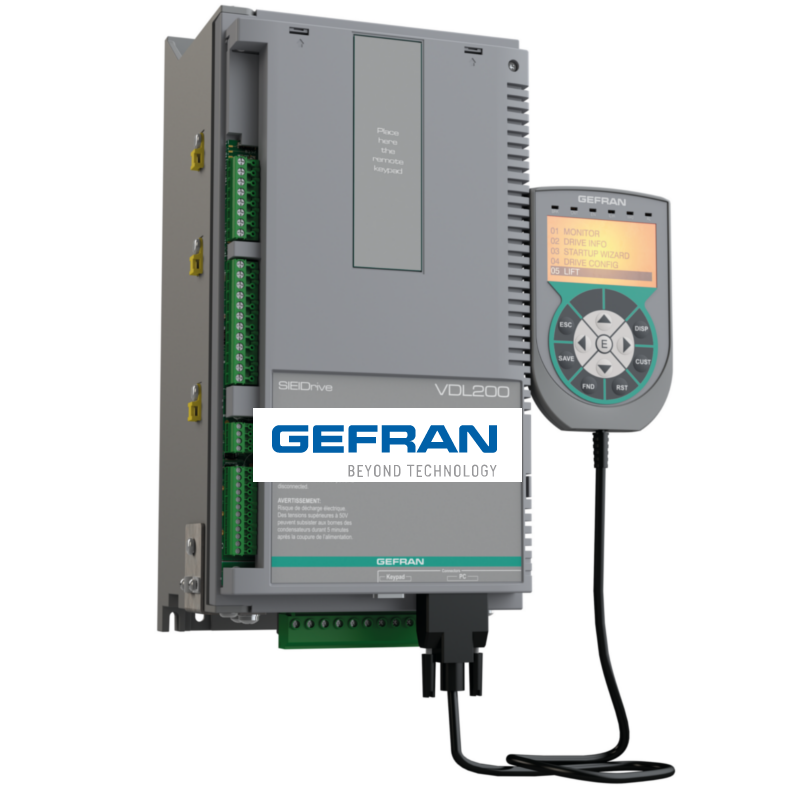

ADL300 Lift Field oriented vector inverter for synchronous/asynchronous motors

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: GEFRAN VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Description

Power Data

Power Supply:

  • Version ADL300-4: 3ph 230 – 400 – 480Vac (-15% / +10%) @ 50/60Hz (±5%).
  • Version ADL300-2T: 3ph 200 – 230Vac (±10%) @ 50/60Hz (±2%)
  • Version ADL300-2M: 200Vac (-10%) ….230Vac (+15%) @ 50/60Hz (±2%)

Motor Ratings:

  • Version ADL300-4: 4kW (5Hp) …. 75kW (100Hp).
  • Version ADL300-2T: 4kW (5Hp) …. 37kW (40Hp).
  • Version ADL300-2M: 1.1kW (1Hp) …. 5.5kW (7.5Hp).

EMC & Mark Compliances:

  • Integrated EMI Filter for EN 12015; EN 61800-3 2nd environment, category C2 and C3
  • CE Mark
  • UL and cUL Elevator Accessory E365347 certified also evaluated in accordance with ASME A17.5 and CSA B44.1.
  • Compliant to UNI EN 81-1:1998 + A3:2009, EN81-20, EN81-50
  • Safety Torque Off (STO) EN61800-5-2:2007 SIL3 Certified

Main Features

  • Control in Speed
  • Control in Position
  • Direct Approach
  • Relevelling
  • Short Floor Management
  • Emergency single-phase power supply for floor return
  • DCP3 and DCP4 Protocol
  • CANopen CiA™ 301 Protocol
  • CANopen Lift CiA™ 417 Protocol
  • Integrated Breaking Unit
  • External +24Vdc power supply for low stand-by consumption
  • Peripheral Encoder Management

Product Set-Up
The configuration set-up can be done by the following:

  • 7 segments digit Keypad (integrated)
  • Optional alphanumeric keypad (KB-ADL)
  • PC with Graphical User Interface GF-eXpress

Easy and safe start-up
Thanks to the Wizard and the different access profiles (easy and expert) the configuration of the drive is fast and intuitive. The still autotuning is quickly performed, avoiding operators to decouple the car from the ropes, assuring a safe working environment and a faster commissioning.

Available Configurations
3 different configurations to answer all the requirements:

BASIC

  • 8 programmable digital inputs (NPN/PNP) + 1 Enable input
  • 4 single-contact programmable relay outputs
  • 5 Vdc TTL incremental digital encoder
  • Absolute SinCos encoder

BASIC ENDAT

  • 8 programmable digital inputs (NPN/PNP) + 1 Enable input
  • 4 single-contact programmable relay outputs
  • Absolute Endat 2.1/2.2 and SSI

ADVANCED

  • Extended Pluggable optional I/O cards
  • Extended Pluggable Optional Encoder cards
  • 24Vdc HTL incremental digital encoder

Options

  • KB-ADL multilingual programming keypad with memory (up to 5 configurations)
  • Dedicated external EMC filters (for version without integrated EMC Filter).
  • External braking resistors
  • AC and DC input chokes
