Description

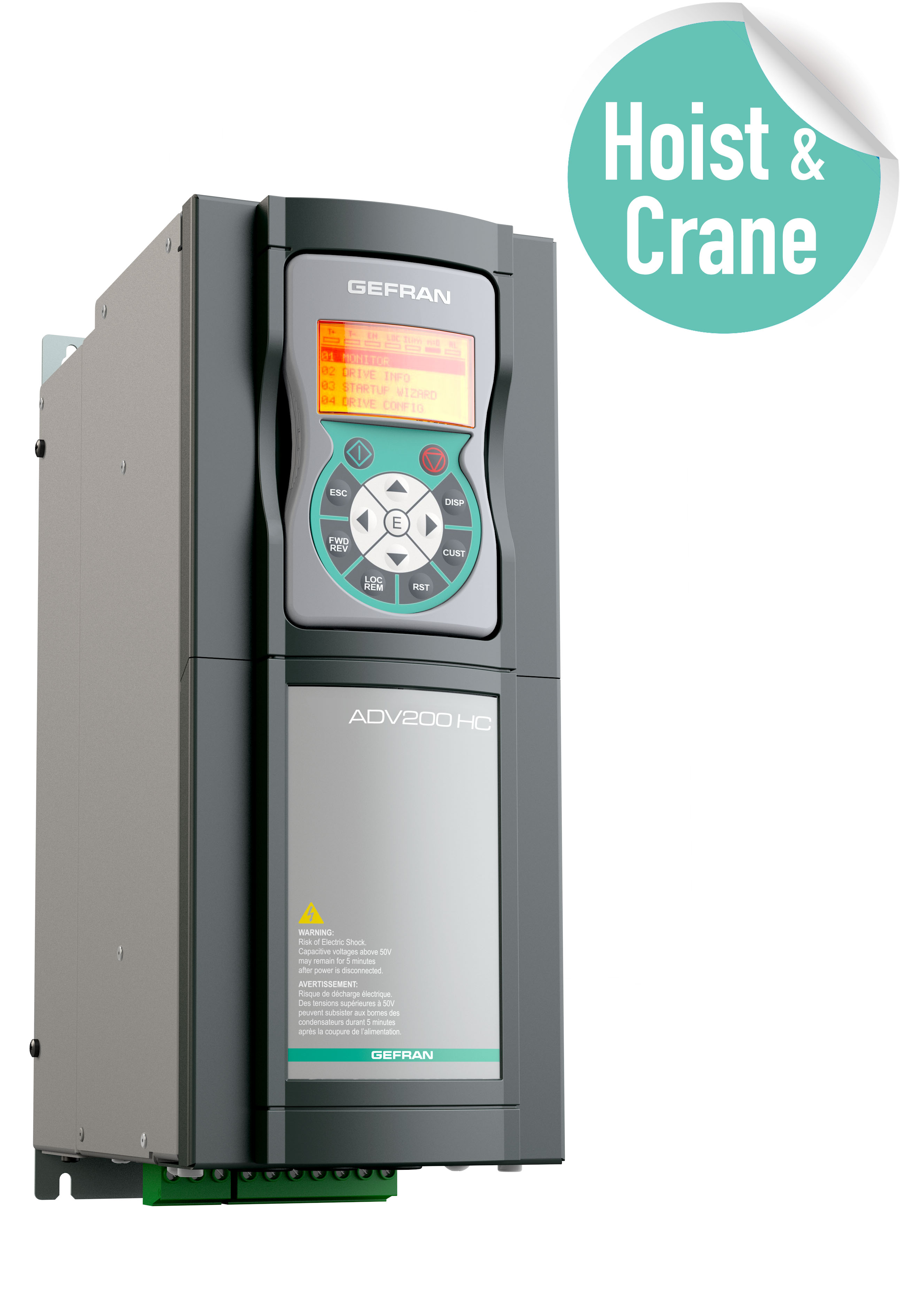

Field-oriented vector inverter, from 0.75kW up to 1.65MW
* Mains supply:
- 3 x 380…480Vac, 50/60Hz (-4 models )
- 3 x 690Vac, 50/60Hz (-6 models )
- 450…750Vdc (-DC-4 models)
- 600…1120Vdc (-DC-6 models)

* Motor ratings from 0.75kW (1Hp) to 1.65MW (2200Hp)
* Certifications: CE. UL, cUL

Functions:

  • Motor type: asynchronous
  • Self-tuning rotational and stand still of speed-current-flux regulators and motor data identification
  • Torque control
  • Simplified Start-up menu
  • Instantaneous Overload up to 180%
  • Motor, Drive and Braking resistor I2t thermal protection
  • 100% torque at zero-speed
  • Braking management
  • Function hoist speed-up
  • Function Anti-Sway
  • Function Overtravel,
  • Function Anti impact
  • Function Master/Follower
  • Multispeed function (16 programmable preset)
  • 4 independent programmable Multi-ramp
  • Double motor parameters setting
  • Joystick management
  • CT an VT operating mode
  • Memory Keypad with 5 parameters set

Options:

  • I/O expansion cards, configurable according to the customer's machine needs
  • Expansion cards for the management of auxiliary encoders
  • Field-bus interface cards: ProfiBus , CANopen, DeviceNet, GDNet, EtherCAT, EtherNet/IP
  • Safety Stop card in accordance with EN 954-1 (Cat.3) PL "e"
  • Braking resistors (standardized for the whole line)
  • Dedicated EMC filters (in compliance with CEE - EN61800-3:2004)
  • Input & Output chokes (standardized for the whole line)
  • OPT-485-ADV, RS485 optoisolatore per collegamenti multidrop in RS485
  • BUy, External Braking Unit for drives power over 55kW
  • AFE200 Regen Active Front End power supply unit
  • KB-ADV Remotable keypad kit

Features:

  • Regulation control modes: FOC with Speed feedback, FOC open loop, V/F
  • Max Output frequency 500Hz
  • DC Choke integrated up to 132kW
  • EMC Filter integrated
  • Dynamic Braking Module integrated up to 55kW
  • Heavy duty and Light duty overload management
  • Up to 4 options on board
  • Multilanguage programming software (5 languages)
  • Alphanumeric programming keypad
  • 2 Bipolar Analogue Inputs  (Voltage/Current)
  • 2 Bipolar Analogue Outputs (1: Voltage/Current, 1: Voltage)
  • 6 Digital Inputs (PNP / NPN)
  • 2 Digital Outputs (PNP / NPN)
  • 2 Relay Outputs, single contact
  • RS485 Serial Line (Modbus RTU protocol)
  • Interfacing with the more common field bus: ProfiBus, CANopen, DeviceNet, EtherNet real.time GDNet, EtherCAT, EtherNet/IP, ProfiNet
  • IP20 protection degree as standard (IP00 size 7 and parallel unit)
