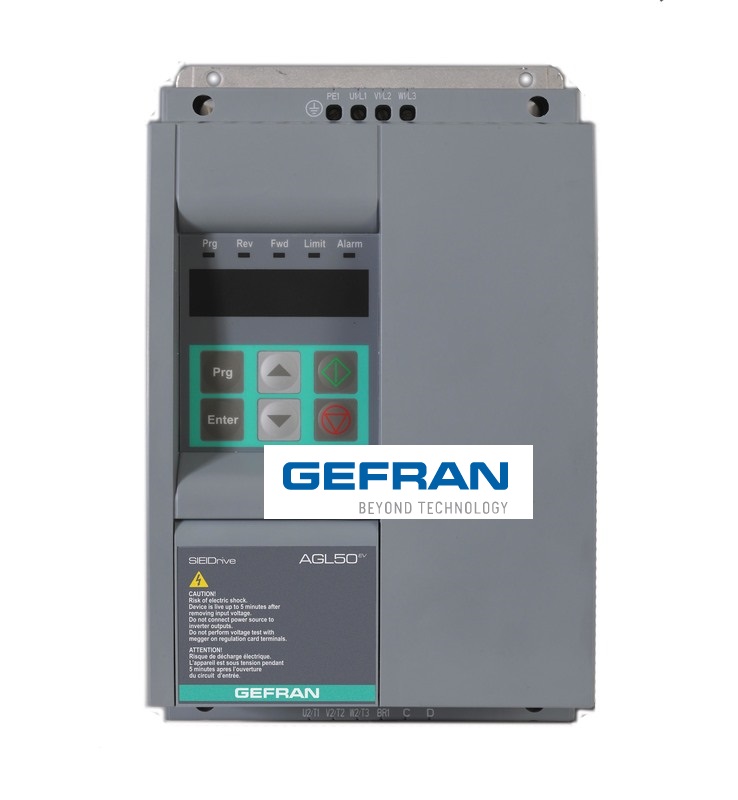

Description

Power Data
* Power supply: 3 x 400 – 480Vac (-15% / +10%) @ 50Hz (-2%) / 60Hz (+2%)
* Motor power ratings: 4kW (5Hp) - 5.5kW (7.5Hp) - 7.5kW (10Hp)
* Overload: 170% for 10 seconds
* Motor type: Asynchronous

EMC & Mark Compliances:

  • CE Mark

Main Features

  • Compact Dimensions
  • Multispeed control
  • Short floor management
  • Flexible ramps management
  • Self-tuning of motor parameters
  • Lift sequences
  • Integrated Motor control
  • Integrated brake control
  • Integrated braking unit

Product Set-Up
The configuration set-up can be done by the following:

  • Integrated keypad
  • PC with Graphical User Interface GF-eXpress

Easy and safe start-up
Thanks to the User-friendly menu the configuration of the drive is fast and intuitive.

Options:

  • External EMC filters (in compliance with EN12015)
  • Input and Output chokes
  • Braking resistors
