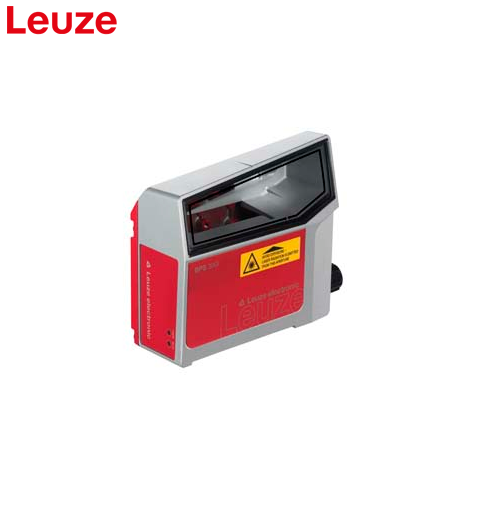

Model: BPS 348i SM 100 Bar code positioning system Máy quét mã vạch Leuze

Specifications:

Special version: Heating

Depth of field: 50 ... 170 mm

Light source: Laser, Red

Laser class: 2, IEC/EN 60825-1:2007

Light beam exit: Lateral

Messbereich: 0 ... 10,000,000 mm

Reproducibility (1 sigma): 0.05 mm

Measurement value output: 2 ms

Max. traverse rate: 10 m/s

Supply voltage UB: 18 ... 30 V, DC

Power consumption, max.: 17.7 W
