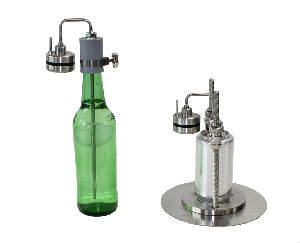

CanNeed CAN-85B, CAN-125B Pasteurization Temperature Monitor (PU Monitor), is the most advanced PU Monitor, high quality and powerful function.
Either connect to the computer or connect to the data Processor for displaying the measuring results.
The logger of CAN-85B, CAN-125B PU Monitor is portable and it was a stainless steel weldless one-piece design, which ensured its excellent sealability and long service life.
CAN-85B, CAN-125B PU Monitor record and store the temperature data of the whole sterilizing process, calculate the total PU value, killing PU value (PU value that obtained when temperature is above 60℃), max. wine temperature, max. water temperature, runtime and the runtime of the two max. temperature. Users can define the sampling frequency of the monitoring. The powerful professional software CND-LogSee can print the report and curve, save data as Excel files and transfer the data to those computers which have not installed the CND-LogSee software.
1) CAN-85B, CAN-125B is responding sensitively, no temperature lag.
2) Display the measuring results on the data processor, independent of computers.
3) CAN-85B, CAN-125B is fine designed, the height of PU monitor is shorter than the sterilizing machine.
4) Not only able to monitor different kinds of bottled beer, but also the canned beer; double communication channel, can measure both the inner bottle temperature and the water temperature.
5) Able to measure the total PU value, killing PU value (PU value that obtained when temperature is above 60℃), max. wine temperature, max. water temperature and total runtime.
6) Print the temperature curve via a printer.
7) The powerful software CND-LogSee is able to review, analyze, store and print the data or curves.
8) Can abate the PU value of random period of time, convenience for evaluating the production plants.
9) Can custom multiple PU calculating formulae, like setting to calculate the PU above 50℃ or 60℃.
10) Can save and export the data to Excel files.
11) Each probe is an independent PU monitor, to monitor several sterilizing lines with several probes at the same time.
12) Suitable for bottles and cans with various capacity and size.
13) Use the new style protecting base, firmness and durable.
14) Small size, light and easy to carryover.
15) The logger and temperature probe is a stainless steel weldless one-piece design, which ensured its excellent sealability.
CAN-85B, CAN-125B Pasteurization Temperature Monitor (PU Monitor), consisting of:
1） Double channel temperature logger, CAN-85B /125B, 1pc,
2） Interface CAN-TR , 1pc
3） Communication cable, CAN-USB, 1pc
4） Software CND-LogSee, 1set
5） Seal components, CAN-BFL, 1pc
6） Protecting base, CAN-BBAS, 1pc
7） Portable toolbox 1pc
（Optional for data processor CAN-200P）
Technical data (Changes reserved):
1) Double Channel : Monitor 2 temperature
2) Measuring range : CAN-85B: -20~85℃, CAN-125B: -20~125℃
3) Accuracy : ± 0.3℃
4) Resolution : ± 0.1℃
5) Pressure endurance : 2 MPa
6) Sensor : Pt100
7) Data collecting interval : 5s - 8h, adjustable
8) Memory : 18,000 readings（if collecting interval is 5s, able to record for 25 hours.）
