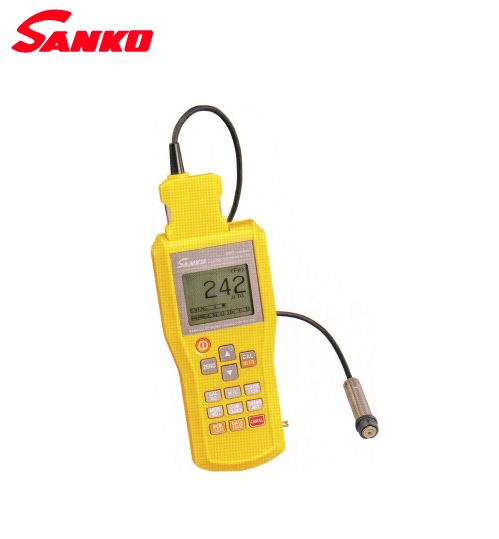

ELECTRO-MAGNETIC /
EDDY CURRENT COATING THICKNESS METERS
SWT-7000Ⅲ/7100Ⅲ
Interchangeable probes. Easy measuring methods with simple key-layout
Probe can be selected to meet optimal application of measurements.
Firm-gripping feeling with slim body.
Guide-messages of operation procedures on LCD screen.
Simple, easy key-operations with 4-independent keys.
Availability of data transfer to PC by USB connections. (SWT-7100Ⅲ)
Applications
Coating / lining / plating
Insulating films such as anodic oxide coating (ALMITE)
Specifications
Measuring range  :  Depending on optional probes
Display method  :  Graphic LCD
Calibrations  :  2 points calibration type
Calibration memory  :  One each for ferrous and nonferrous
Data transfer  :  USB (7100Ⅲ)
Power  :  Dry battery (R6P 1.5V)×2, Exclusive AC adaptor (7100Ⅲ), Auto-power off
Temperature  :  0~40℃(non-condensing)
Weight and dimensions  :  72(W)×30(H)×156(D)mm, 200g
Accessories  :  Carrying case, (7100Ⅲ) Exclusive AC adaptor, USB cable, USB driver
Option  :  For ferrous substrate probe (Fe) For nonferrous substrate probe (NFe)
