WF-221 Small Vibrating Equipment Sinfonia
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: SINFONIA VIET NAM
Mr. Bảo| ■Specifications |
| Model | 【NEW】WF-221 |
| Stroke(mm) | 1.5 |
| Vibration frequency(Hz) | 50〜70 |
| Voltage(V) | 200/220 |
| Applicable controller | C10-5VFEF |
| Weight(kg) | Approx. 250 with trough (In case of Trough W300×L2000mm) |
| Current(A) | 4.5 |
| Main material | Stainless steel (Armature is Carbon steel plating) |
| Trough weight | Max. 36 |
| Max. trough length(mm) | 2000 |
| Auxiliary cable | Cab tire cable 2PNCT 1500mm（1.25mm2×3core) |

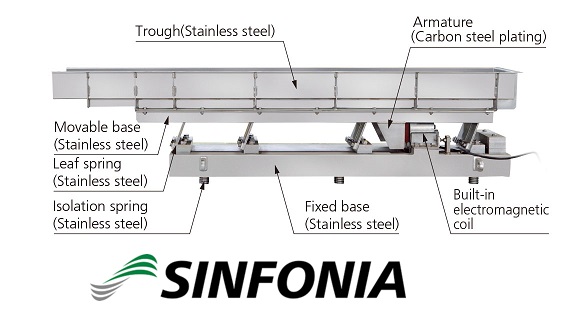

| ■Structural diagram |
 |
| ■Dimensions |
 |
