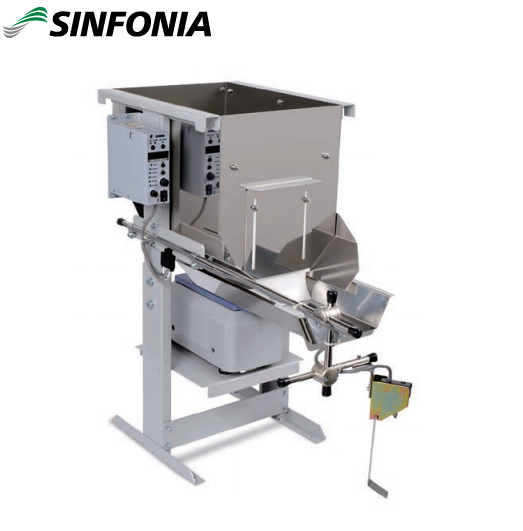

Máy cấp phôi tự động dạng phễu (Feeder Type Hoppers)
Xuất sứ: Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: SINFONIA VIET NAM
Mr. BảoMáy cấp phôi tự động dạng phễu (Feeder Type Hoppers)
Model: HPF-15-3815B
Specifications
|
Hopper |
Model |
L (*1) |
N | Sliding base No. x P |
S | T | Weight (kg) |
Electromagnetic feeder |
|
| Feeder Model |
Rated Current（A） |
||||||||
| 15 | HPF-15-3815B | 381〜 580 |
150 | 5×50 | 310 | 225 | 46 | CF-2 | 0.5 |
| 30 | HPF-30-4215B | 380〜 580 |
150 | 5×50 | 360 | 265 | 50 | CF-2 | 0.5 |
| 60 | HPF-60-6030B | 430〜 780 |
300 | 8×50 | 536 | (358) | 140 | CF-3 | 1.0 |
| 100 | HPF-100-6030B | 430〜 780 |
300 | 8×50 | 536 | (358) | 147 | CF-3 | 1.0 |
| Note: | *1 Hoppers come in stainless steel only. *2 Vibration frequency: 50~70Hz; rated voltage: 200/220V; compatible controller: C10-1VFEF. (No standard model with 100/110V specifications.) *3 Paint finish: Munsell N7.5 *4 For 15- and 30-liter hoppers, hopper heights come in 5 levels at 50mm intervals: for 60- and 100-liter hoppers, hopper heights come in 8 levels at 50mm intervals. *5 Heavy-duty 60- and 100-liter hoppers (permissible total work weight 112kg) are available as non-standard models. * Manufactured to order. |
